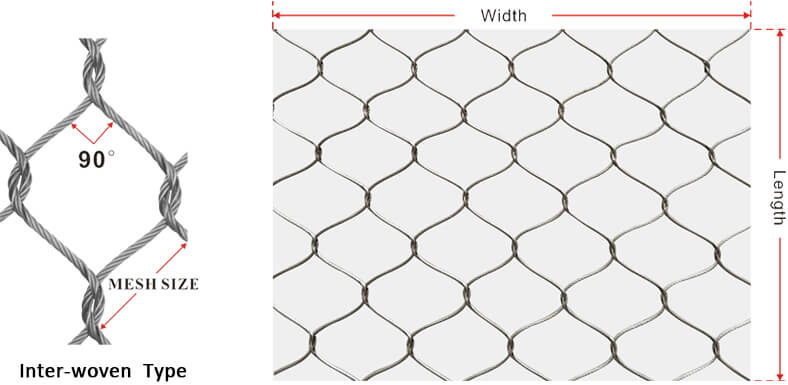

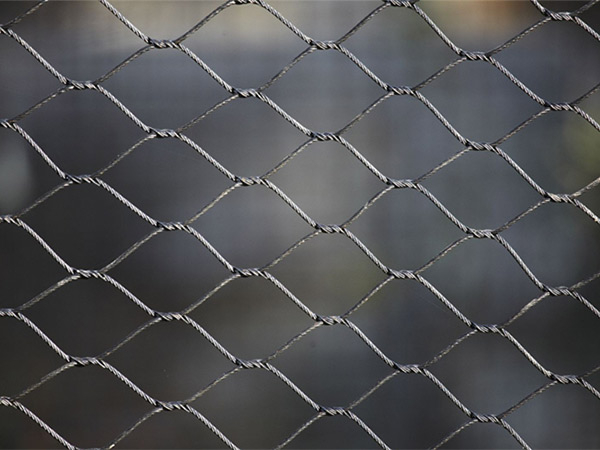

FLEXIBLE STAINLESS STEEL CABLE MESH WOVEN TYPE INTRODUCTION
Stainless steel cable mesh is a flexible metal mesh with a diamond mesh which is formed by a special process and a plurality of stainless steel wire ropes which are linked by interlacing and knotting. Stainless steel cable mesh also known as stainless steel wire rope mesh, is a very creative wire mesh is a creative product with excellent stretch elasticity and flexibility.
Stainless steel wire rope mesh has a very wide range of specifications, providing a very wide range of applications.

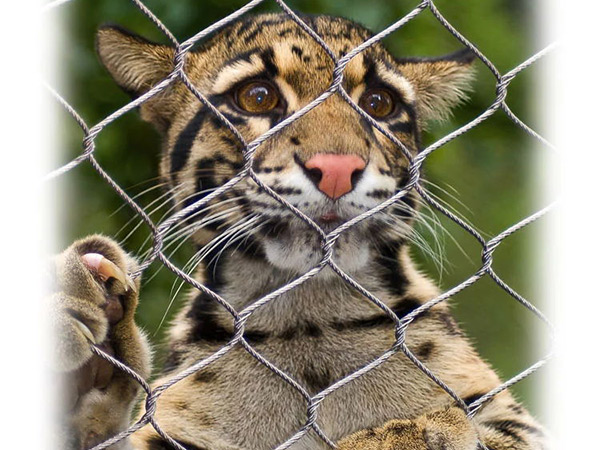

Stainless steel wire rope mesh is widely used, with different wire rope diameters and different mesh sizes. Therefore it can be applied to stainless steel aviaries, stainless steel fences, stainless steel animal cages, stainless steel monkey enclosures, stainless steel lion fencing, stainless steel parrot mesh panels, etc.
Wire cable diameter: 1/8″(3.2mm), 3/32″(2.4mm), 5/64"(2.0mm), 1/16″(1.6mm), and 3/64″(1.2mm)
Mesh aperture: 4/5″ x 4/5″(20mm x 20mm), 1″ x 1″(25.4mm x 25.4mm), 1-1/2″ x 1-1/2″(38mm x 38mm), 2″ x 2″(51mm x 51mm), 3″ x 3″(76mm x 76mm) and 4″ x 4″(102mm x 102mm), or larger..
Material
The stainless steel cable mesh is made of AISI standard 304/316 stainless steel wire rope material, and the structure is 7x7 or 7x19. This material serves as the basis for a stainless steel wire rope mesh with very good flexibility and tensile strength, corrosion resistance, and long life, depending on the stainless steel material.
AISI304/316 is austenitic stainless steel with excellent plasticity and strength, high-temperature resistance and corrosion resistance.It is widely used in food processing equipment and medical equipment industry.
★ It can be made to customer orders and statically tested especially suitable for facades
★ High strength, strong toughness, free-angles curving and fold, easy for transportation and installment.
★ Anti-corrosive, resist the rust, can be repeated use.
★ Resists chewing by rodents and other pests (tensile strength approximately 100-110,000 PSI)
★ This product can bear the heavy snow and the gale very much.
★ Without toxic material, safety, environmental protection.
Code | Wire Cable Diameter | Aperture(mm) | Wire Cable Diameter(inch) | Aperture(Inch) | Unit weight(Kg/sq.m.) | Wire Cable Structure | Min.Breaking Load(KN) |
#32152 | 3.2mm | 152 x 152 | 1/8" | 6" x 6" | 0.61 | 7×19 | 7.32 |
#32127 | 3.2mm | 127 x 127 | 1/8" | 5" x 5" | 0.70 | 7×19 | 7.32 |
#32120 | 3.2mm | 120 x 120 | 1/8" | 4.7" x 4.7" | 0.76 | 7×19 | 7.32 |
#32102 | 3.2mm | 102 x 102 | 1/8" | 4" x 4" | 0.96 | 7×19 | 7.32 |
#3290 | 3.2mm | 90 x 90 | 1/8" | 3.6" x 3.6" | 1.10 | 7×19 | 7.32 |
#3276 | 3.2mm | 76 x 76 | 1/8" | 3" x 3" | 1.40 | 7×19 | 7.32 |
#3260 | 3.2mm | 60 x 60 | 1/8" | 2.4" x 2.4" | 1.65 | 7×19 | 7.32 |
#3251 | 3.2mm | 51 x 51 | 1/8" | 2" x 2" | 2.10 | 7×19 | 7.32 |
#24152 | 2.4mm | 152 x 152 | 3/32" | 6" x 6" | 0.35 | 7×7 | 4.08 |
#24127 | 2.4mm | 127 x 127 | 3/32" | 5" x 5" | 0.42 | 7×7 | 4.08 |
#24102 | 2.4mm | 102 x 102 | 3/32" | 4" x 4" | 0.51 | 7×7 | 4.08 |
#2490 | 2.4mm | 90 x 90 | 3/32" | 3.6" x 3.6" | 0.60 | 7×7 | 4.08 |
#2476 | 2.4mm | 76 x 76 | 3/32" | 3" x 3" | 0.72 | 7×7 | 4.08 |
#2460 | 2.4mm | 60 x 60 | 3/32" | 2.4" x 2.4" | 0.87 | 7×7 | 4.08 |
#2451 | 2.4mm | 51 x 51 | 3/32" | 2" x 2" | 1.07 | 7×7 | 4.08 |
#2076 | 2mm | 76 x 76 | 5/64" | 3" x 3" | 0.50 | 7×7 | 3.10 |
#2060 | 2mm | 60 x 60 | 5/64" | 2.4" x 2.4" | 0.76 | 7×7 | 3.10 |
#2051 | 2mm | 51 x 51 | 5/64" | 2" x 2" | 0.80 | 7×7 | 3.10 |
#2038 | 2mm | 38 x 38 | 5/64" | 1.5" x 1.5" | 1.10 | 7×7 | 3.10 |
#16102 | 1.6mm | 102 x 102 | 1/16" | 4" x 4" | 0.26 | 7×7 | 2.12 |
#1676 | 1.6mm | 76 x 76 | 1/16" | 3" x 3" | 0.37 | 7×7 | 2.12 |
#1660 | 1.6mm | 60 x 60 | 1/16" | 2.4" x 2.4" | 0.45 | 7×7 | 2.12 |
#1651 | 1.6mm | 51 x 51 | 1/16" | 2" x 2" | 0.50 | 7×7 | 2.12 |
#1638 | 1.6mm | 38 x 38 | 1/16" | 1.5" x 1.5" | 0.65 | 7×7 | 2.12 |
#1630 | 1.6mm | 30 x 30 | 1/16" | 1.2" x 1.2" | 0.90 | 7×7 | 2.12 |
#1625 | 1.6mm | 25 x 25 | 1/16" | 1" x 1" | 1.10 | 7×7 | 2.12 |
#12102 | 1.2mm | 102 x 102 | 3/64" | 4" x 4" | 0.15 | 7×7 | 1.19 |
#1276 | 1.2mm | 76 x 76 | 3/64" | 3" x 3" | 0.19 | 7×7 | 1.19 |
#1251 | 1.2mm | 51 x 51 | 3/64" | 2" x 2" | 0.25 | 7×7 | 1.19 |
#1238 | 1.2mm | 38 x 38 | 3/64" | 1.5" x 1.5" | 0.40 | 7×7 | 1.19 |
#1230 | 1.2mm | 30 x 30 | 3/64" | 1.2" x 1.2" | 0.45 | 7×7 | 1.19 |
#1225 | 1.2mm | 25 x 25 | 3/64" | 1" x 1" | 0.55 | 7×7 | 1.19 |
#1220 | 1.2mm | 20 x 20 | 3/64" | 0.8" x 0.8" | 0.73 | 7×7 | 1.19 |
Service
1, Free Sample: A sample of fewer than 1 feet square is provided free of charge. Request needs to incur the courier charges.
2, Panel size: The panel size can be modified to the size you provide, which reduces costs and makes installation easier.
3, Packaging: The rope mesh will be rolled and packed into the P.P. woven bags or pallet.
4, Lead time: The order could be arranged within 24hours, lead time is between 7-30 days depending on the quantum of order.
5, For individual users: We can provide installation tools and installation accessories, you can easily complete DIY.
6, Order: We charge a 30% deposit and you can accept and pay the final payment before shipment.
Shipment
Depending on the quantity of the order, natural color products are usually shipped for 7-15 days, and dyed products need to be increased by about 7 days.
There are 3 modes of transportation available for delivery:
1. By express. Our partner company has FedEx, TNT Express, DHL Express. Shipping time is generally 3-7 days.
2. By air. Our nearest airport is Beijing Airport, the transportation time is generally 3-7 days, generally, require customers to go to the airport to clear customs.
3. By sea. Our nearest port is Tianjin Port, the transportation time is usually 7-30 days, requiring customers to arrive at the port for customs clearance.
Shipment Options | |
≦20kg | Within 100kg, it is recommended to choose express delivery. TNT/ups |
20kg-300kg | It is recommended to choose express. TNT/FedEx/DHL/ups |
300kg-1000kg | More than 300 kg recommended express or air freight. FedEx/DHL Air Freight |
1000kg | More than 1000 kg recommended air freight or sea shipping. Air Freight/Sea Shipping |
