Polyester Screen Printing Mesh

Our polyester printing mesh and nylon filter mesh has the characteristics of high tension, low elongation, uniform mesh, excellent wear and corrosion resistance, high stability, high precision, dust and static resistance, good silk printing performance, etc. The products are widely used in textile printing, glass and ceramics, label printing, PCB, membrane switch, aerospace, food, medical, filtration and other industries. Our products are exported to Southeast Asia, the Middle East, Europe, America and other countries and regions.

Availability:



Inquire Add to Basket

Product Description

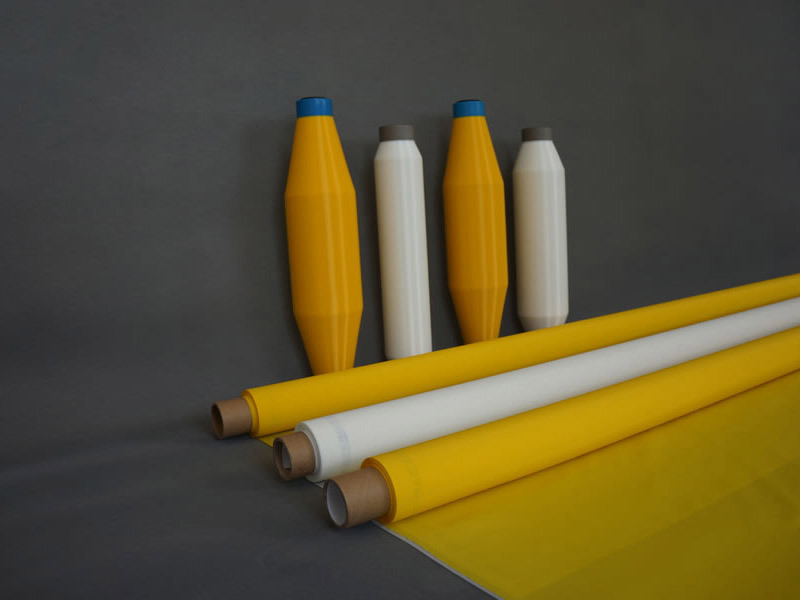

Polyester Screen Printing Mesh

QINGFA WIRE MESH CO.,LTD is a processional supplier with more than 30 years of R&D and production experience in polyester screen printing mesh.
Our polyester printing mesh and nylon filter mesh has the characteristics of high tension, low elongation, uniform mesh, excellent wear and corrosion resistance, high stability, high precision, dust and static resistance, good silk printing performance, etc. The products are widely used in textile printing, glass and ceramics, label printing, PCB, membrane switch, aerospace, food, medical, filtration and other industries. Our products are exported to Southeast Asia, the Middle East, Europe, America and other countries and regions.

From coarse mesh to fine mesh, from separation & filtration to screen printing, we're able to offer full solutions for our clients in different industries.

And benefit from our efficient production arrangement, we always have more inventory than most factories, so our lead time is always leading our industry.

Polyester Screen Printing Mesh Description：

Our company now has more than 300 Sulzer P7100 & P7150 looms, Beginner warping machines, cleaning and setting equipment, laser cutting equipment, ink-jet printing machine, quality inspection detectors and ultrasonic welding equipment. Printing products are mainly mono-filament printing mesh from 10 to 600 mesh, and common width is 127 cm, 165 cm, 260 cm, 330 cm, the widest can reach 365 cm, special width, specifications and color can be customized.

Material	100% polyester mono filament yarn
Weave Type	PW 1:1
Mesh Count	18 ~ 460 mesh/inch 7T~180T mesh/cm
Color	white and yellow
Width	50 cm ~ 370 cm
Stock	2000 ~ 10000 meters each of commonly used specifications
Features	High Tension and Low Elongation, Very good dimensional stability and excellent tear resistance
Screen Printing Mesh Application: Silk screen printing, T-shirt printing, textile printing, ceramic printing, glass printing, graphic printing, fabric printing, flatbed printing, PCB printing, CD/DVD printing, carpet printing, etc.

Polyester Screen Printing Mesh Feature：

● High tensile strength and low elongation.

● Resilient yet flexible enough to be used for printing on irregular surfaces.

● Excellent water and solvent resistance.

● Wide ranges of mesh count for choice.

● Ideal for stencil makers and screen printers.

● Custom service can be supplied for different requirements.

Polyester Screen Printing Mesh Application：

Polyester mono filament mesh is the most widely used screen printing mesh for textile, glass, ceramic, electronics and solar industries.

It provides excellent reproducible printing results and exceptional and accurate image quality and durability.

Additional, the wide ranges of mesh counts for different printing substrates can satisfy your most of printing requirements.

● Textile screen printing

● Glass screen printing

● Ceramic screen printing

● PCB (Printed Circuit Boards) screen printing

● Solar panel printing

● Plastics & packaging

● Membrane switches

Polyester Screen Printing Mesh

Polyester Screen Printing Mesh screen-printing-mesh-solar-cells

Packing

1. Paper tube inside, plastic bag outside, then packed in cartons.
2. Folding the mesh into plastic bag, then packed in cartons.

Polyester Printing Mesh list

Type	Mesh Count	Aperture	Thread Diameter	Opening	Thickness	Ink through Volume theoretically	Tensile Strength


	(mesh/inch)	(micron)	(micron)	(%)	(micron)	(cm³/m²)	(N/CM)
6-400	15	1300	400	65	780-810	560	110
7-350	18	1067	350	55	585-598	389	110
8-300	20	970	300	58	550-580	406	100
10-250	25	700	250	49	508-518	355	85
12-140	30	685	140	68	273-275	189	65
12-150	30	696	150	67	270-274	180	50
12-250	30	597	250	53	495-505	305	85
15-250	38	467	250	49	489-501	213	83
16-120	40	515	120	65	225-230	147	62
16-140	40	461	140	58	230-238	139	65
16-150	40	485	150	58	282-292	164	65
16-200	40	435	200	44	329-341	151	70
16-250	40	356	250	34	420-425	145	85
18-150	45	410	150	53	255-275	138	50
20-80	50	399	80	69	132-142	92	36
20-100	50	380	100	62	165-172	105	50
20-150	50	358	150	50	252-257	126	55
21-80	55	378	80	68	125-140	125	36
21-150	55	330	150	46	260-280	123	55
24-80	60	343	80	65	132-136	86	42
24-100	60	316	100	57	188-195	109	49
24-120	60	303	120	51	230-240	104	51
24-150	60	273	150	42	249-255	100	60
28-80	70	262	80	58	130-138	79	40
28-100	70	243	100	50	165-174	85	45
30-120	75	213	120	41	235-245	102	52
32-64	80	236	64	60	105-110	68	31
32-80	80	237	80	55	120-130	110	40
32-100	80	212	100	46	145-155	69	49
34-100	85	198	100	44	165-172	71	50
36-80	90	202	80	51	145-150	70	45
36-90	90	185	90	45	155-165	65	49
36-100	90	182	100	41	175-185	60	51
39-55	100	195	55	56	88-96	55	24
39-80	100	176	80	48	148-153	73	31
39-100	100	154	100	37	168-173	60	42
43-80	110	147	80	41	125-131	53	31
47-55	120	152	55	51	88-96	48	29
48-70	120	135	70	41	108-120	46	30
51-55	51	134	55	50	92-98	47	28
53-48	135	139	48	55	85-90	48	26
53-55	135	128	55	47	88-96	45	29
54-64	137	115	64	39	95-105	39	30
54-70	137	108	70	34	108-120	40	31
58-55	145	118	55	38	89-94	40	30
59-45	150	124	45	54	83-87	29	31
59-48	150	121	48	51	85-89	43	29
59-55	150	114	55	45	85-90	38	30
59-64	150	105	64	36	103-108	39	25
61-48	155	115	48	49	76-83	41	30
62-64	155	105	64	42	98-107	33	31
64-45	160	105	48	43	73-82	37	30
64-53	160	105	53	44	78-86	34	30
64-55	160	98	55	38	85-95	36	30
64-64	160	88	64	30.0	95-105	30.7	31.0
68-55	175	85	55	34.0	85-95	29.2	30.0
68-64	175	78	64	29.0	108-110	32.0	32.0
72-48	180	90	48	36.0	75-84	33.1	28.0
72-55	180	80	55	33.0	89-95	31.0	29.0
77-48	195	81	48	34.0	80-85	29.0	28.0
77-55	195	75	55	28.0	86-92	26.6	29.0
80-48	200	72	48	33.0	75-84	28.7	27.0
90-48	230	56	48	25.0	77-85	23.5	25.0
100-40	250	58	40	37.0	66-73	21.3	28.5
110-40	280	52	40	33.0	78-85	20.5	29.6
120-31	305	49	31	36.0	50-55	19.5	29.0
120-34	305	45	34	30.5	52-57	18.4	30.5
120-40	305	37	40	21.0	65-67	13.5	32.0
130-34	330	42	34	30.0	50-55	16.5	31.0
130-40	330	31	40	17.0	63-68	12.0	32.0
140-31	355	34	31	25.0	48-53	13.0	29.0
140-34	355	31	34	19.5	56-62	14.4	31.0
150-31	380	36	31	29.0	43-47	13.1	30.5
150-34	380	30	34	20.5	56-62	14.9	30.5
165-31	420	31	31	22.5	52-58	12.5	28.9
