Galvanized welded wire mesh can be divided into electrical galvanized welded wire mesh, hot-dipped galvanized welded wire mesh.
Besides, according different processing methods, there are galvanized before welding wire welded mesh and galvanized after welding welded mesh.
Like electrical galvanized wire welded mesh, hot-dipped galvanized wire welded mesh, galvanized redrawing wire welded mesh, electrical galvanized（after welding） welded wire mesh, hot-dipped galvanized(after welding) welded wire mesh.
And Galvanized redrawing welded wire mesh is welding by high quality redrawing low carbon steel wire( the material of this kind wire is high quality hot-rolled wire rod. The main processes is Acid washing, galvanizing, and cold-drawing). The surface of this kind mesh is very bright. It is easy to transport and store. And the price is lower than electrical galvanized welded wire mesh. It is popular in the market. The usage of this kind mesh is same as black welded wire mesh.
electrical galvanized welded mesh has 15g/m2 zinc coating in common. It was used in industrial, building, travel, mine etc.

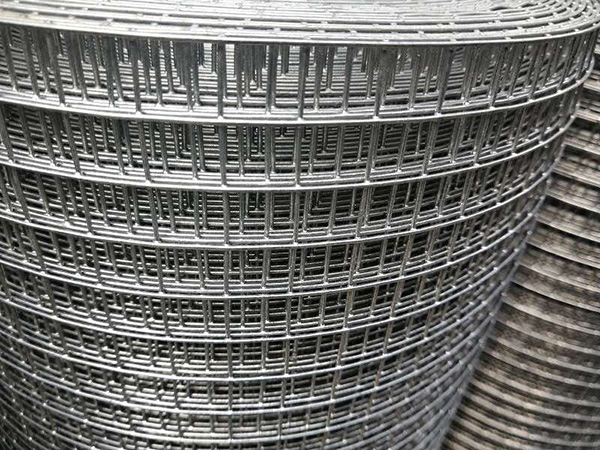

Hot-dipped galvanized welded mesh has thicker zinc. The zinc coating is more than 130g/m2. And the quality is better than electrical galvanize. It usually used in external wall thermal insulation system, concrete pouring，poultry farm, oil, chemical, machines and exports etc.
Specifications

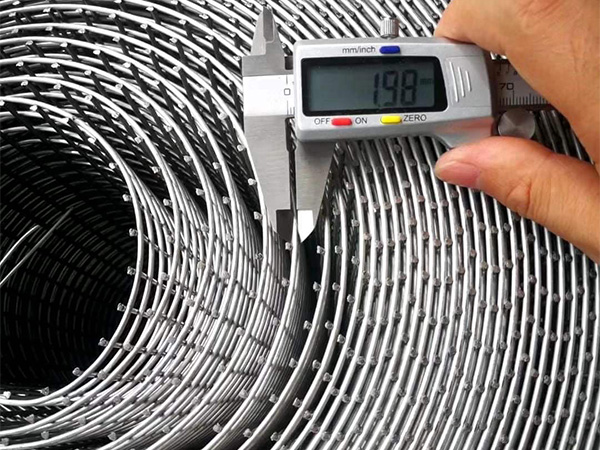

Wire diameter : 1.3 MM to 6 MM
Mesh size : 12.5 MM to 200 MM
Width : 2000 MM
Used For
Cooler gates
Wall reinforcement in residential houses
Schools
Club houses
Under ground water tank linings
Bird cages and many more
Galvanized/PVC Coated Welded Wire Mesh | ||
Opening | Wire Diameter | |
In inch | In metric unit(mm) | <BWG> |
1/4" x 1/4" | 6.4mm x 6.4mm | 21,22,23,24,25,26,27 |
2.5/8" x 2.5/8" | 7.94mmx7.94mm | 20,21,22,23,24,25,26 |
3/8” x 3/8” | 10.6mm x 10.6mm | 19,20,21,22,23,24,25 |
1/2” x 1/2” | 12.7mm x 12.7mm | 16,17,18,19,20,21,22,23,24,25,26,27 |
5/8” x 5/8” | 15.8mm x 15.8mm | 16,17,18,19,20,21,22,23,24,25 |
3/4” x 3/4” | 19.1mm x 19.1mm | 14,15,16,17,18,19,20,21,22,23,24,25 |
6/7” x 6/7” | 21.8mmx21.8mm | 14,15,16,17,18,19,20,21,22,23,24,25 |
1" x 1/2" | 25.4mm x 12.7mm | 14,15,16,17,18,19,20,21,22,23,24 |
1" x 1" | 25.4mmX25.4mm | 14,15,16,17,18,19,20,21,22,23 |
1-1/4" x 1-1/4" | 31.8mmx31.8mm | 14,15,16,17,18,19,20,21,22,23 |
1-1/2" x 1-1/2" | 38mm x 38mm | 13,14,15,16,17,18,19,20,21 |
2" x 1" | 50.8mm x 25..4mm | 13,14,15,16,17,18,19,20,21 |
Galvanized welded wire mesh can be divided into electrical galvanized welded wire mesh, hot-dipped galvanized welded wire mesh.
Besides, according different processing methods, there are galvanized before welding wire welded mesh and galvanized after welding welded mesh.
Like electrical galvanized wire welded mesh, hot-dipped galvanized wire welded mesh, galvanized redrawing wire welded mesh, electrical galvanized（after welding） welded wire mesh, hot-dipped galvanized(after welding) welded wire mesh.
And Galvanized redrawing welded wire mesh is welding by high quality redrawing low carbon steel wire( the material of this kind wire is high quality hot-rolled wire rod. The main processes is Acid washing, galvanizing, and cold-drawing). The surface of this kind mesh is very bright. It is easy to transport and store. And the price is lower than electrical galvanized welded wire mesh. It is popular in the market. The usage of this kind mesh is same as black welded wire mesh.
electrical galvanized welded mesh has 15g/m2 zinc coating in common. It was used in industrial, building, travel, mine etc.
Hot-dipped galvanized welded mesh has thicker zinc. The zinc coating is more than 130g/m2. And the quality is better than electrical galvanize. It usually used in external wall thermal insulation system, concrete pouring，poultry farm, oil, chemical, machines and exports etc.
Specifications
Wire diameter : 1.3 MM to 6 MM
Mesh size : 12.5 MM to 200 MM
Width : 2000 MM
Used For
Cooler gates
Wall reinforcement in residential houses
Schools
Club houses
Under ground water tank linings
Bird cages and many more
Galvanized/PVC Coated Welded Wire Mesh | ||
Opening | Wire Diameter | |
In inch | In metric unit(mm) | <BWG> |
1/4" x 1/4" | 6.4mm x 6.4mm | 21,22,23,24,25,26,27 |
2.5/8" x 2.5/8" | 7.94mmx7.94mm | 20,21,22,23,24,25,26 |
3/8” x 3/8” | 10.6mm x 10.6mm | 19,20,21,22,23,24,25 |
1/2” x 1/2” | 12.7mm x 12.7mm | 16,17,18,19,20,21,22,23,24,25,26,27 |
5/8” x 5/8” | 15.8mm x 15.8mm | 16,17,18,19,20,21,22,23,24,25 |
3/4” x 3/4” | 19.1mm x 19.1mm | 14,15,16,17,18,19,20,21,22,23,24,25 |
6/7” x 6/7” | 21.8mmx21.8mm | 14,15,16,17,18,19,20,21,22,23,24,25 |
1" x 1/2" | 25.4mm x 12.7mm | 14,15,16,17,18,19,20,21,22,23,24 |
1" x 1" | 25.4mmX25.4mm | 14,15,16,17,18,19,20,21,22,23 |
1-1/4" x 1-1/4" | 31.8mmx31.8mm | 14,15,16,17,18,19,20,21,22,23 |
1-1/2" x 1-1/2" | 38mm x 38mm | 13,14,15,16,17,18,19,20,21 |
2" x 1" | 50.8mm x 25..4mm | 13,14,15,16,17,18,19,20,21 |
