Anti-climbing fence has more rigid double vertical wire welding structure, which makes it difficult to cross. Anti-climb rigid mesh fencing has the advantages of anti-climbing, anti-cutting, anti-corrosion, and good viewing visibility. Combined with the fence top of razor barbed wire, security fence spikes, or tooth spikes, it becomes a ideal high-security fencing for high-end applications, such as, prisons, military and power facilities.
High security anti-climbing fence features
Good viewing visibility, it is a type of high security clear view fencing.
Welded well at each intersection.
Intrusion resistant, with extremely strong double vertical wire design.
Small mesh aperture, anti-cut, anti-climb, finger-resistant and toe-resistant.
Corrosion resistant with zinc aluminum alloy and PVC powder coating.
Surface finish after welding, every weld-point are protected well.
High strength with fully integrated with posts and anti-tamper fixings.
Fence security toppings are optional.
Easy for installation and free maintenance.
5 year warranty.

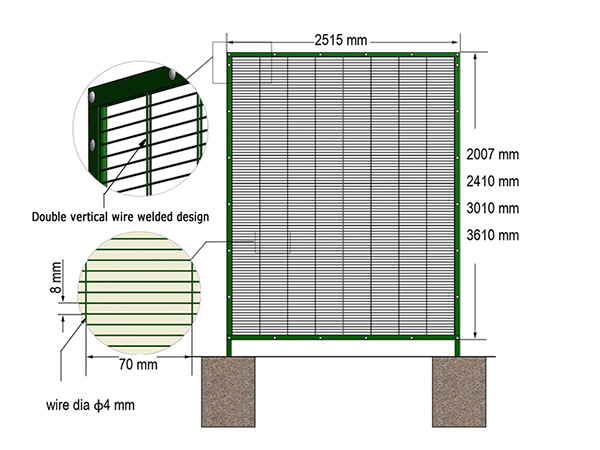

Anti climb fence specifications:
Wire: 4 mm steel wire.
Wire surface finish: galfan coating after welded, and then PVC powder coating (Min. 120 micron), or PVC powder painting.
PVC coated color: black, dark green, brown, yellow, desert sand, bronze or other colors request.
Mesh opening pattern: 70 mm × 8 mm, welded well at each intersection.
Mesh sheet width: 2515 mm.
Anti-climb mesh fencing panels and posts.
| Fence height (m) | Panel size (Height × Width) | Fence Post (Height × Size × Thick) | Clamp Bar (Height × Width × Thick ) | Inter or corner Clamp No. (PCS) |
|---|---|---|---|---|
| 2.0 | 2007 mm × 2515 mm | 2700 × 80 × 80 × 3 mm | 2007 × 60 × 5.00 mm | 7 or 14 |
| 2.4 | 2410 mm × 2515 mm | 3100 × 80 × 80 × 3 mm | 2400 × 60 × 5.00 mm | 9 or 18 |
| 3.0 | 3010 mm × 2515 mm | 3800 × 100 × 100 × 3.0 mm | 2997 × 80 × 6.00 mm | 11 or 22 |
| 3.6 | 3610 mm × 2515 mm | 4500 × 100 × 100 × 3.5 mm | 3607 × 100 × 7.00 mm | 13 or 26 |
| Note: anti-climb mesh fencing can be custom ordered to measure. | ||||

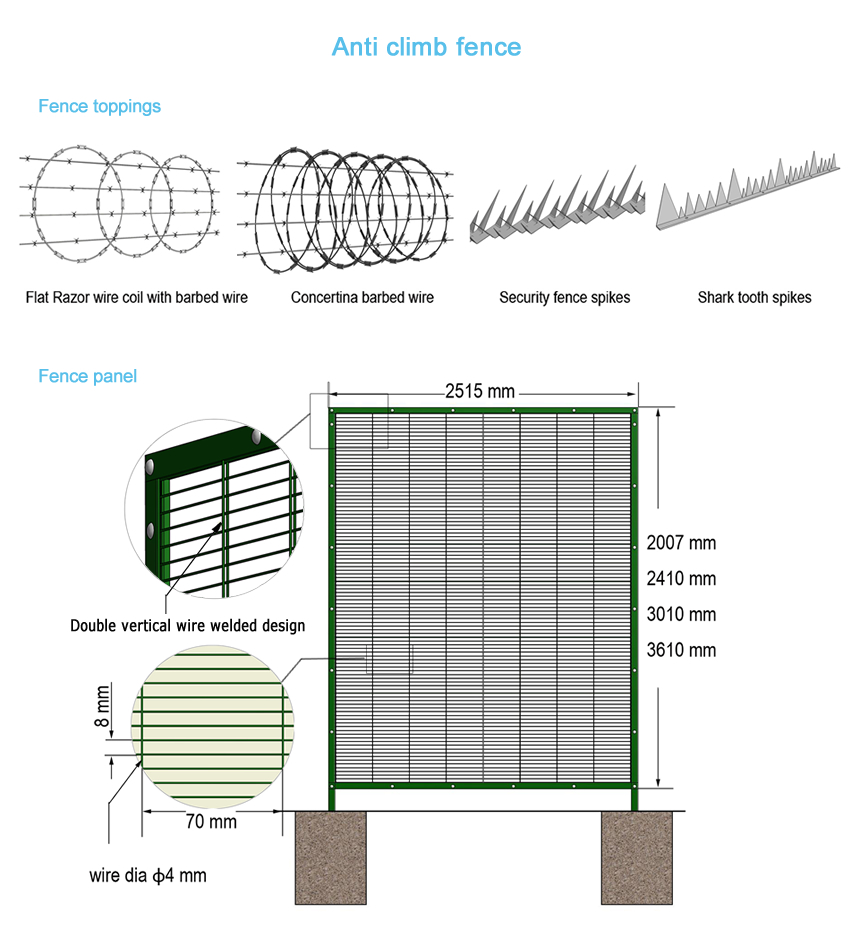

Fence security toppings: Flat razor wire coils with barbed wire, concertina barbed wire, security fence spikes, or shark tooth spikes (coating according to the anti-climb fence panels).
Galvanized and PVC coated barbed wire with 2 strands and 4 points.
Gauge of strand and barb wire: 11 gauge.
Barbs spacing: 3 inch.
Style: flat razor wire or concertina razor wires.
Barb length: short barb or long barb.
Material: galvanised steel, stainless steel (for extremely corrosive environments).
Wire: high tensile 25 mm, aluminum/zinc wire, breaking load 7700 N.
Coil Diameter: 600 mm, 750 mm.
Number of loops: 55.
Extent length: 7.5 m.
Plate thickness: 2.0 mm
Base width: 65 mm.
Spike length: 35 mm short spikes, 70 mm long spikes.
Spikes pitch: 70 mm.
Shark tooth spikes: width 35 mm, long teeth up to 58 mm.
Security anti-climb fence spikes:
Razor wire
Barbed wire
Anti-climb fence with double vertical wire provides an ideal solution for high security perimeter and access control applications, such as:
Prison perimeter areas.
Military sites and government facilities.
Electricity distribution sites.
Airports, railways, roadways.
Seaports.
Fencing & intrusion detection projects.
Hydel power project.
Petroleum and chemical facilities.
Wildlife sanctuaries.
Warehousing facilities,
School.
