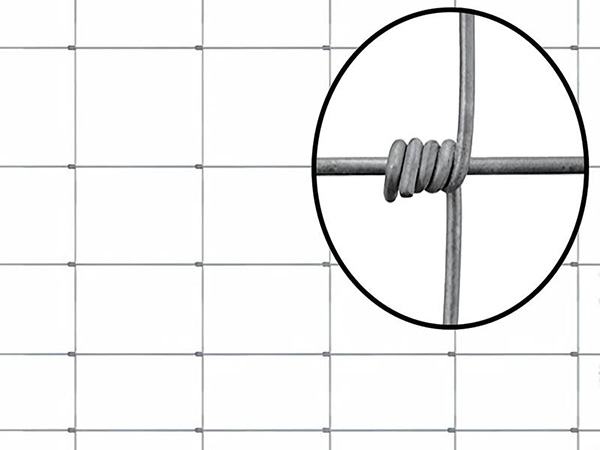

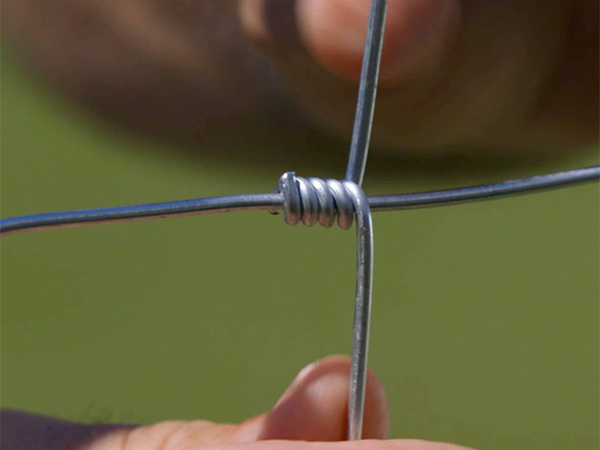

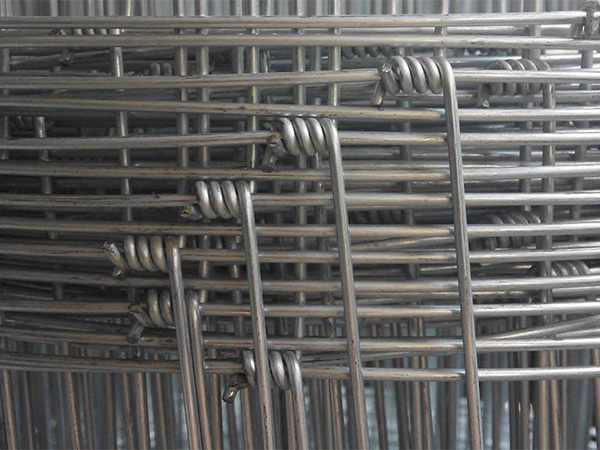

Hinge joint fencing, always called farm fencing, has four wrap hinge joint, in which two vertical stay wires wrap together to form hinged joint. This knot acts as a hinge that gives under pressure, then springs back into shape. This provides easy installation because the hinge "gives" while retaining full height for continuing protection and good looks. Vertical wires are individually cut and wrapped for maximum strength and flexibility.
Different height options for different animals.
Different horizontal wire spacing for different growth period.
Different vertical wire spacing for different tensile strength.
Special discount for large orders and projects.
Fixed knot fencing is also available.
Suitable for chicken, rabbit, cat, horse, sheep, deer and even camel.
Dimensions
Materials: Zinc-aluminum alloy wire or galvanized low carbon steel wire, both high tensile wire.
Line wire diameter: 1.6/2.0/2.5/3.0 mm
Top and bottom wire diameter: 2.0/2.5/3.0/3.7 mm
Fence height: 1.05 m to 2.4 m.
Table 1: Different Wire Diameters of Hinge Joint Fence | ||||||||
Light duty fence | Middle duty fence | Heavy duty fence | Extra heavy duty fence | |||||
Wire Diameter (mm) | Minimum Tensile Strength (N/mm2) | Wire Diameter (mm) | Minimum Tensile Strength (N/mm2) | Wire Diameter (mm) | Minimum Tensile Strength (N/mm2) | Wire Diameter (mm) | Minimum Tensile Strength (N/mm2) | |
Top and bottom wire | 2.0 | 650 | 2.5 | 650 | 3.0 | 650 | 3.7 | 650 |
Line wires | 1.6 | 450 | 2.0 | 450 | 2.5 | 400 | 3.0 | 400 |
Table 2: Popular Specifications of Hinge Joint Fence | |||||
Hinge Joint Field Fence Types | Fence Height (mm) | Horizontal Wires Number | Distance Between The Vertical Wires (mm) | Mesh Opening Number – Mesh Height (mm) | Roll Length (m) |
1050/13/15 | 1050 | 13 | 150 | 6–75, 6–100 | 50, 100, 150 |
1250/15/15 | 1250 | 15 | 150 | 6–75, 8–100 | |
1550/18/15 | 1550 | 18 | 150 | 6–75, 11–100 | |
1550/15/15 | 1550 | 15 | 150 | 11–100, 3–150 | |
1850/20/15 | 1850 | 20 | 150 | 6–75, 11–100, 2–150 | |
1850/16/15 | 1850 | 16 | 150 | 10–100, 3–150, 2–200 | |
1950/17/15 | 1950 | 17 | 150 | 11–100, 3–150, 2–200 | |
2000/21/15 | 2000 | 21 | 150 | 6–75, 11–100, 3–150 | |
2400/23/15 | 2400 | 23 | 150 | 6–75, 11–100, 3–150, 2–200 | |
Advantages
Easy installation and fixation.
HDG material for longevity and excellent corrosion and rust resistance.
High utility value. Wide range of applications (animals fields, farmland, lawns and gardens).
Applications

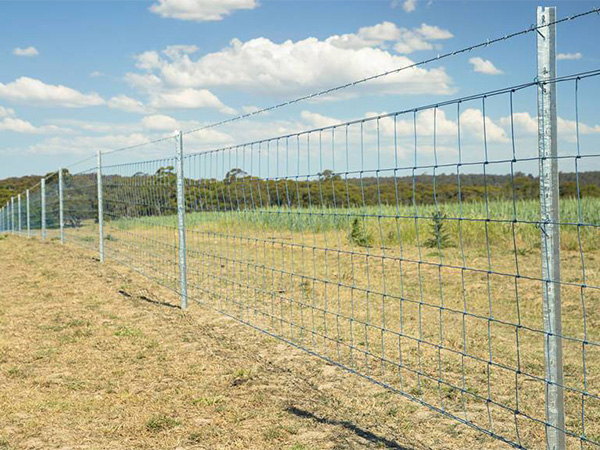

Hinged mesh, cheap and durable, is used in fencing pastures, fields, forests and other large areas.

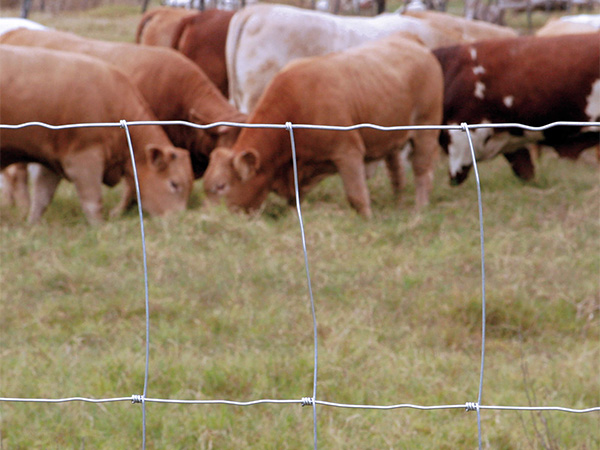

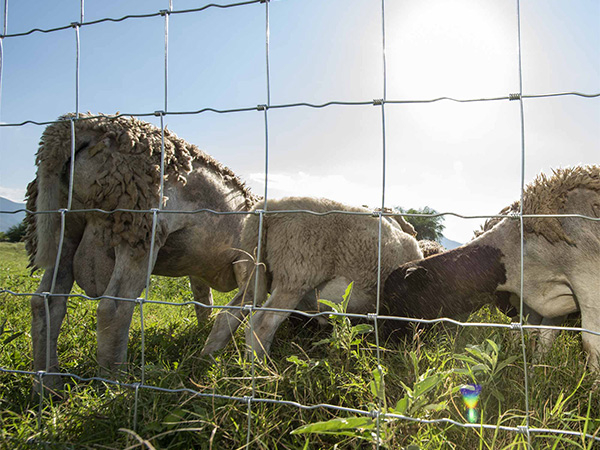

Hinge joint fencing is the best choice of ranchers for protecting their jumping animals like deer, horses and cow, sheep and goat.
At the bottom of the fence, height mesh height of 5 cm fencing is also recommended for various types of poultry, such as chicken, rabbits, and keeps your farm fields, roads, forests and gardens from the incursions of rabbits and foxes. This hinge joint knot type field fencing is economical knot fence.
