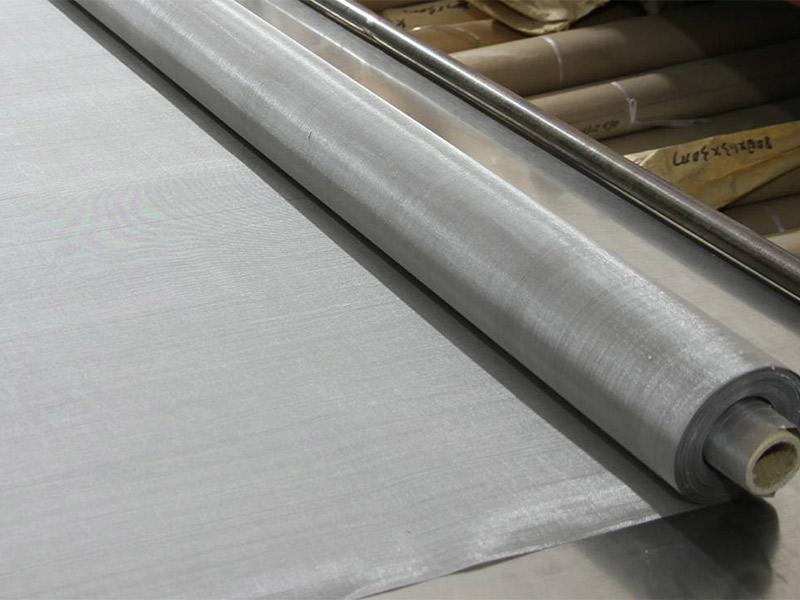

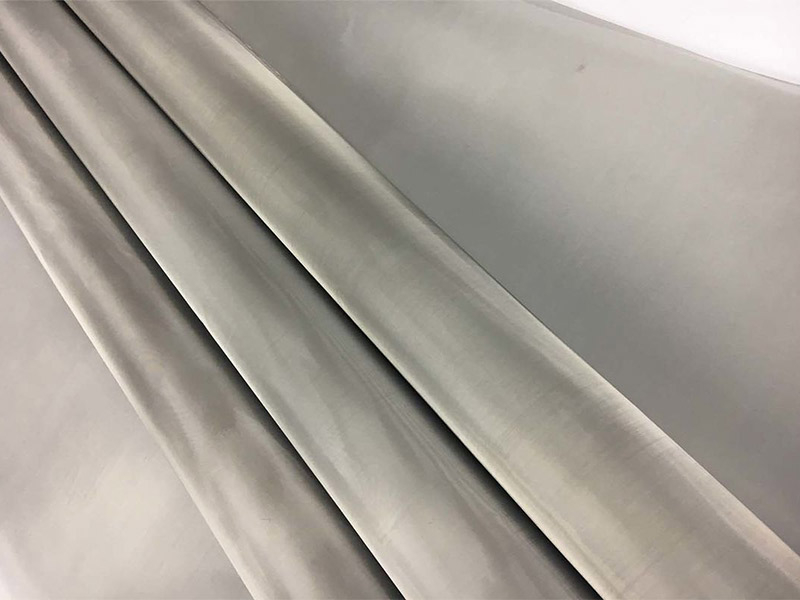

Stainless Steel Screen Printing Mesh

QINGFA WIRE MESH CO.,LTD who manufactures stainless steel screen printing mesh which is being made in a square shaped formation. This type of printing mesh is normally made in opening and is very high in permeation. The stainless steel printing mesh is a thin wire cloth which is produced in the basic weaving form and also has a flat exterior in its surface without having any joints. The mesh surface has a uniform opening and has acid resistant and alkali resistant capability. It is manufactured in long lasting formation and to survive form the ultra violet radiations.

Stainless steel mesh for screen printing is particularly noted for their high levels of properties, such as high tension, super precision, low elongation, high flexibility, high corrosion resistance, good heat-melting resistance and great solvent resistance.

Many years of research and dedication to being an industry leader in China resulted in meeting a variety of your deposition needs.

Stainless steel printing mesh is mainly used in the plate making in electronics printing, textile printing, ceramics printing, glass printing and filtration in aviation, airspace and petrochemical industries.

QINGFA Screen Super Mesh

This mesh uses a wire imported from Japan, which has 2 times higher tensile strength compared to the common domestic wires and an extremely low elongation rate of 3-5%.This screen printing mesh shows extraordinary performance in printing that requires fine patterns and dimensional accuracy.

QINGFA Screen super mesh is used to Chip Electrical Components, Solar Battery, Flat Panel Display (FPD), Liquid Crystal Display (LCD), Plasma Display Panel (PDP), etc

QINGFA Screen Calender Mesh

This process enables mesh to achieve thinner thickness that is not possible with a regular woven screen. Our process technology enhanced thickness uniformity/flat-lying characteristics of mesh to achieve smoother squeegeeing. This stainless steel printing screen shows its capabilities in improving uniformity of film thickness, reducing printing thickness, superior edge definition, and printing dimensional accuracy

Mesh Dimensions

Standard widths:

· 1020 mm / 40“

· 1220 mm / 48“

· 1530 mm / 60“

· Other widths available on request

Roll lengths:

· 30,50 m standard, longer rolls available on request

· 15,25 m used for superfine, 500 Mesh and finer

· 50,00 m for glass printing

Materials

QINGFA stainless steel meshes are always manufactured using DIN 1.4301/AISI 304 and held in stock. Other materials/alloys such as DIN1.4401/AISI 316 are available on request.
