FLEXIBLE STAINLESS STEEL CABLE MESH FERRULE TYPE INTRODUCTION
Flexible Cable Ferrule Mesh is a soft metal net made of seamless stainless steel ferrules and stainless steel wire rope crimping. The beautiful appearance and high strength of stainless steel wire rope ferrule mesh are favored by customers.
Flexible Cable Ferrule Mesh is also called stainless steel cable ferrule mesh, stainless steel ferrule mesh, ferrule mesh, stainless steel wire rope sleeves mesh, stainless steel cable crimps netting, stainless steel rope ferruled zoo mesh, wire rope ferruled safety net, wire cable crimps mesh etc.

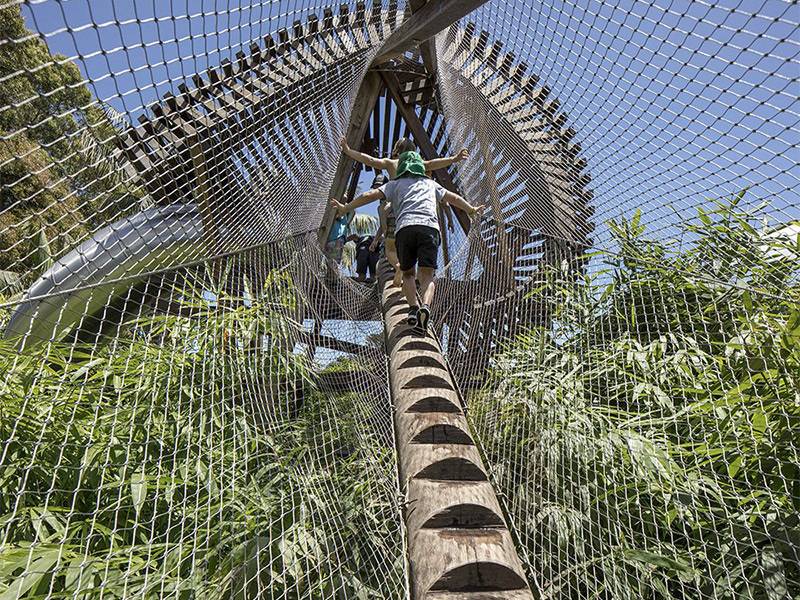

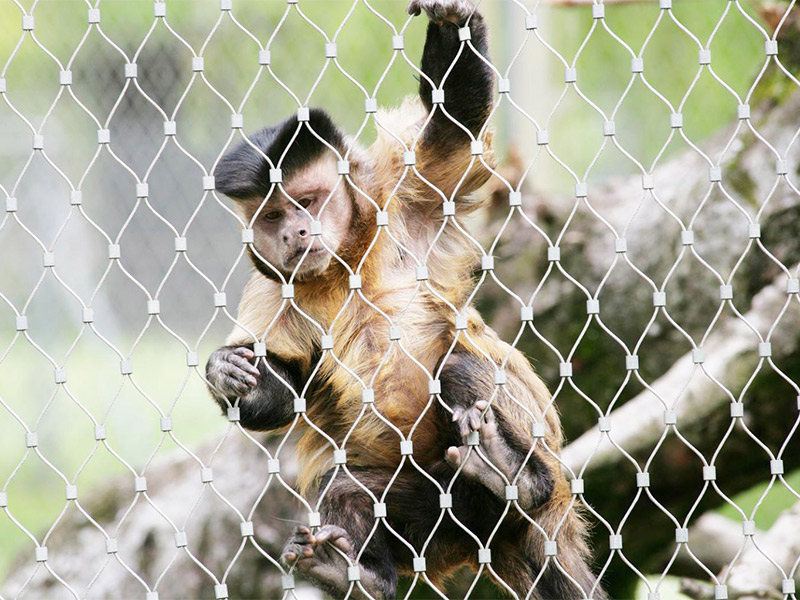

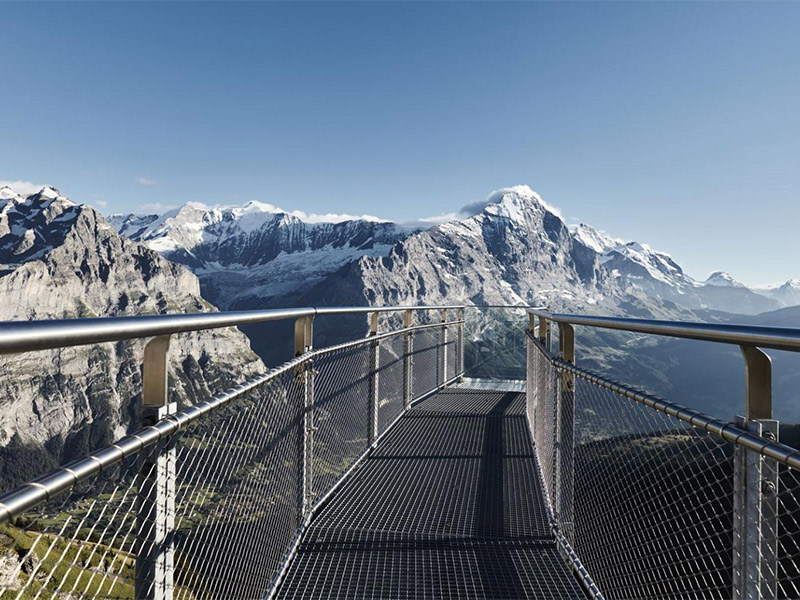

Stainless steel cable ferruled mesh is flexible, soft, durable, and easy to install. It is widely used in various construction projects, including railing filling, balustrade, green wall facade, zoo fence, animal enclosures, decorative net, staircases, safety net, and many other applications.
The stainless steel cable ferrule mesh has many advantages because using premium quality stainless steel materials. Same as cable woven mesh, wire rope ferrule type mesh also has excellent quality. AISI 304 stainless steel is the common material for the option. And AISI 316 grade stainless steel has higher corrosion resistance and can be used in environments with high requirements such as the seaside.
★ It can be made to customer orders and statically tested especially suitable for facades
★ High strength, strong toughness, free-angles curving and fold, easy for transportation and installment.
★ Anti-corrosive, resist the rust, can be repeated use.
★ Resists chewing by rodents and other pests (tensile strength approximately 100-110,000 PSI)
★ This product can bear the heavy snow and the gale very much.
★ Without toxic material, safety, environmental protection.
Material: AISI304/AISI316
Various cable diameter use different ferrule, we can do any size ferrule of you need.
Flexible stainless steel cable mesh FERRULE TYPE (Stainless grade 304)
Code | Wire Cable Diameter | Wire Cable Diameter(inch) | Aperture (mm) | Wire Cable Structure |
#1240 | 1.2mm | 3/64" | 40 x 69 | 7×7 |
#1250 | 1.2mm | 3/64" | 50 x 87 | 7×7 |
#1650 | 1.6mm | 1/16" | 50 x 87 | 7×7 |
#1660 | 1.6mm | 1/16" | 60 x 104 | 7×7 |
#1680 | 1.6mm | 1/16" | 80 x 139 | 7×7 |
#2060 | 2.0mm | 5/64" | 60 x 104 | 7×7 |
#2070 | 2.0mm | 5/64" | 70 x 121 | 7×7 |
#2080 | 2.0mm | 5/64" | 80 x 139 | 7×7 |
#20100 | 2.0mm | 5/64" | 100 x 173 | 7×7 |
#2460 | 2.4mm | 3/32" | 60 x 104 | 7×7 |
#2490 | 2.4mm | 3/32" | 90 x 156 | 7×7 |
#24100 | 2.4mm | 3/32" | 100 x 173 | 7×7 |
#24120 | 2.4mm | 3/32" | 120 x 208 | 7×7 |
#3290 | 3.2mm | 1/8" | 90 x 156 | 7×19 |
#32100 | 3.2mm | 1/8" | 100 x 173 | 7×19 |
#32120 | 3.2mm | 1/8" | 120 x 208 | 7×19 |
#32150 | 3.2mm | 1/8" | 150 x 260 | 7×19 |
Service
1, Free Sample: A sample of fewer than 1 feet square is provided free of charge. Request needs to incur the courier charges.
2, Panel size: The panel size can be modified to the size you provide, which reduces costs and makes installation easier.
3, Packaging: The rope mesh will be rolled and packed into the P.P. woven bags or pallet.
4, Lead time: The order could be arranged within 24hours, lead time is between 7-30 days depending on the quantum of order.
5, For individual users: We can provide installation tools and installation accessories, you can easily complete DIY.
6, Order: We charge a 30% deposit and you can accept and pay the final payment before shipment.
Shipment
Depending on the quantity of the order, natural color products are usually shipped for 7-15 days, and dyed products need to be increased by about 7 days.
There are 3 modes of transportation available for delivery:
1. By express. Our partner company has FedEx, TNT Express, DHL Express. Shipping time is generally 3-7 days.
2. By air. Our nearest airport is Beijing Airport, the transportation time is generally 3-7 days, generally, require customers to go to the airport to clear customs.
3. By sea. Our nearest port is Tianjin Port, the transportation time is usually 7-30 days, requiring customers to arrive at the port for customs clearance.
Shipment Options | |
≦20kg | Within 100kg, it is recommended to choose express delivery. TNT/ups |
20kg-300kg | It is recommended to choose express. TNT/FedEx/DHL/ups |
300kg-1000kg | More than 300 kg recommended express or air freight. FedEx/DHL Air Freight |
1000kg | More than 1000 kg recommended air freight or sea shipping. Air Freight/Sea Shipping |
